An In-depth Guide to 3D Camera Tracking in After Effects

After Effects is a powerful video editing software that has become an industry standard for professionals and enthusiasts alike. One of its notable features is the ability to do 3D camera tracking, allowing users to integrate 3D objects, particles and much more into their 2D footage. If you’re a beginner, this might seem daunting. But fear not! This guide is designed to walk you through the process step by step.

What is 3D Camera Tracking?

3D Camera Tracking (or match moving) is the process of replicating the camera motion from a 2D footage inside a 3D environment. This means you can insert 3D objects into 2D footage, and they’ll move, rotate, and scale in a way that matches the original camera movement, making them seem as though they were part of the original scene.

How to start 3D Camera Tracking in After Effects

1. Prepare your footage

• For best results, use a clip where the camera is moving, but not too erratically. The footage should have clear contrast points (like distinct buildings or trees) to help After Effects track it better.
• Trim any unnecessary parts before starting. This makes the tracking process quicker and more accurate.

2. Import your footage

Open After Effects and create a New Project (Ctrl/Cmd + Alt + N). Go to File > Import > File (or Ctrl/Cmd + I), then select your footage and click “Open”.

3. Start Tracking

• Drag your footage into your composition.
• Select the footage layer and then go to the “Tracker” window.
  If you do not have this window go to Window > Tracker.
• This will add the “3D Camera Tracker” effect and start the 3D tracking process effect on your footage. A blue progress bar will appear on your footage, indicating that After Effects is analyzing the footage. Once complete, it’ll change to “solving camera”. This process can take a while, especially for longer clips.

4. Review the Tracking Points

After the analysis is complete, you’ll notice several colored dots appear on your footage. These are tracking points. If you don’t see these, you can enable them to be visible at all times or by selecting the effect on the tracked layer.

You can hover over them to see the “target”, which gives an idea of the plane in 3D space that After Effects has calculated.

For a clean track, ideally, most of these points should be sticking to their relative positions in the footage.
You can check how accurate the tracking is by opening up the “Advanced” tab on the “3D Camera Tracker” effect and then checking the “Average Error” statistic. Your tracking has been succesful once this is at least under 1 pixel. You should aim for an average error of under 0.5 pixels.

Improving the tracking

If your footage doesn’t seem to track correctly, the issue might come from problems with the footage itself, such as a lack of detail or low quality. Fortunately, there are ways to enhance the tracking process:

1. Remove the “3D Camera Tracker” from your footage.
2. Right-click on the footage and select “Pre-Compose…“.
3. Enter the newly created composition.

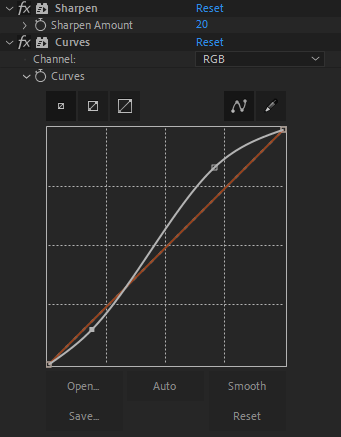

4. Add the “Sharpen” and “Curves” effects to your footage and copy the following settings:

After adding those effects, go back into the main composition, apply the “3D Camera Tracker” to your pre-composed layer and wait for the tracking process to finish.

Detailed analysis

Another way to optimize the tracking process is to enable the “Detailed Analysis” under the “Advanced” option.

5. Selecting the Right Points

Find a group of points that lie on the same plane (like the ground or a wall). The more accurate this selection, the better your 3D object will sit in your scene.

Hold down the Shift key and select these points to form a continuous plane.
The more points you select, the more accurate and steady the result will be.

6. Create a Camera and Null or Solid

Right click on the selected points and choose “Create Camera and Null”. You can also do this with a solid, depending on what you are trying to create. This solid or null will represent your 3D object or position in the 3D space.

A new camera layer and a solid layer (or null layer) will appear in your timeline. This means After Effects has now created a 3D camera that replicates the original camera’s movement.

Insert your 3D Object

Now that we have a point in 3D Space we can create anything we want. A few examples are:

• Tracking text on a wall or any other position in the tracked footage.
• Create a 3D Object with (for example) Element 3D.
• Create particles that will stay in the same spot despite the camera moving. This makes it seem like the particles are really there.

Tips for effective 3D Camera Tracking

• Avoid using footage with motion blur, as it can make tracking difficult.
• Footage with a clear contrast and distinct patterns is easier to track.
• If tracking points aren’t sticking, consider manually refining them or masking out problematic areas.

Whether you’re integrating a 3D title, adding VFX elements, or blending in CGI characters, the process becomes infinitely more real and seamless with this feature.
